General Specs

• Target Car Weight : 700 lbs.

• Bump Load : 3G

• Shock Length :13.39 “

• Section width of tires: 3.74 “

• Tire height: 21.98 in

• Scrub radius= 0 (minimize power loss during straight driving)

• Toe = 0 (minimize power loss during straight driving)

• Camber = 0 (prevent uneven wear of tires (keep in mind we are using narrow tires))

• Caster angle ≤ 10°

• Steering angle/king pin inclination ≤ 15°

• Clearance from ground: 6 “

• Spring weight = 640 lbs

• Target drive frequency =1.5-1.7

Tires

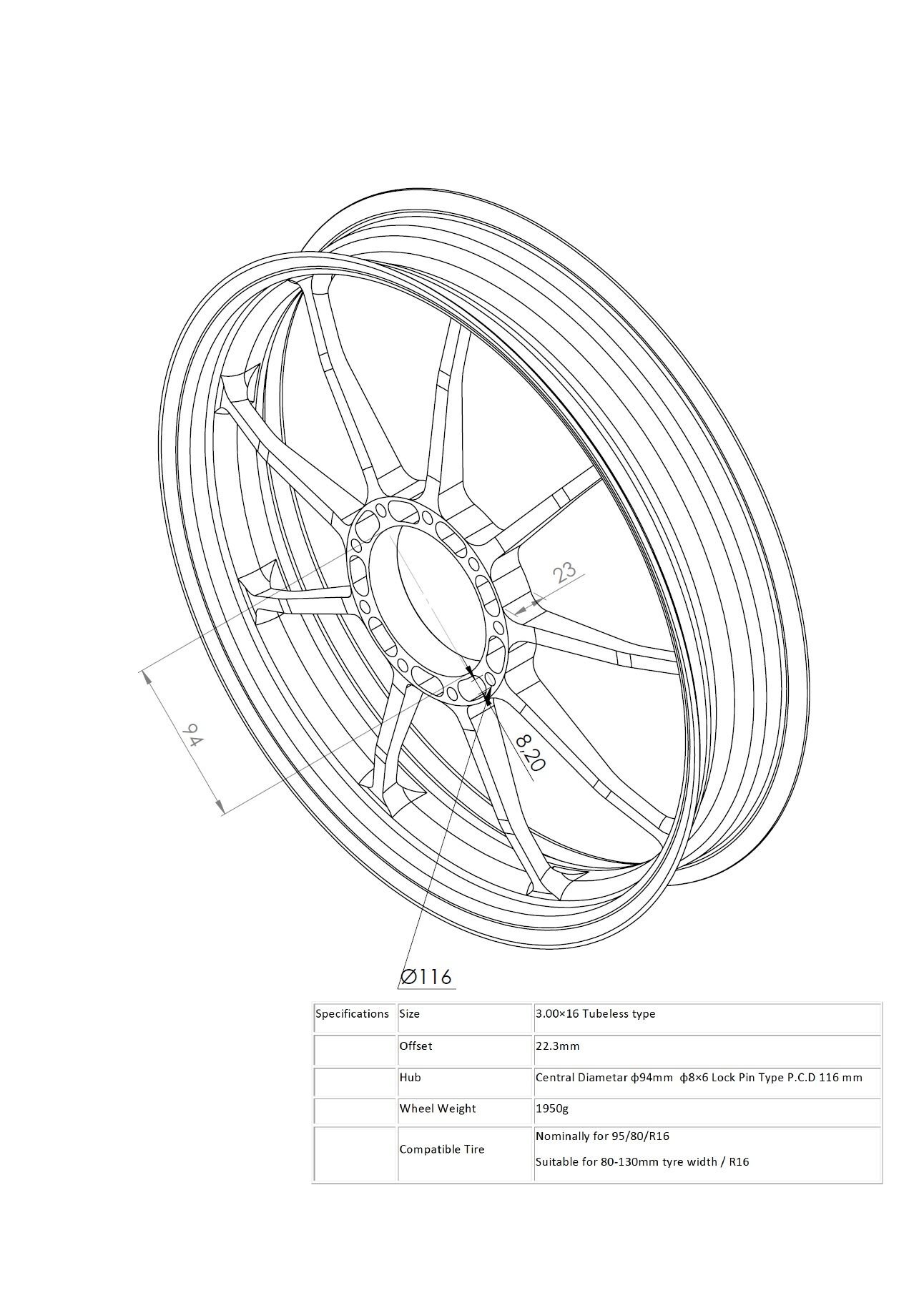

• Michelin 95/80/R16

Wheels

• Vendor : Nomura Co

• Size : 16 in tubeless

MOTOR

• 1000W 96V

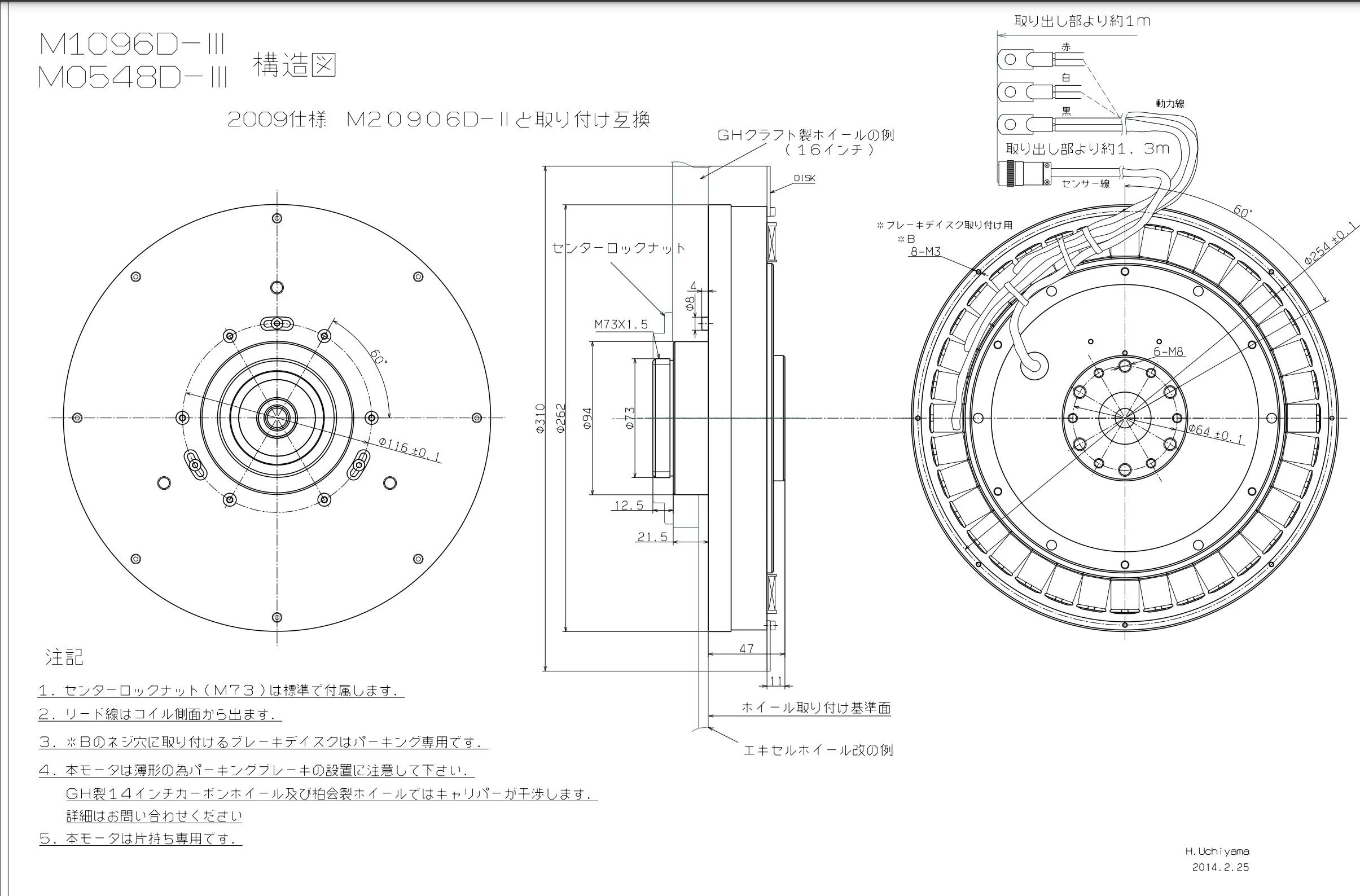

• Model : M1096D-Ⅲ (DC brushless motor in-wheel DD)

• Rated output :1000W

• Maximum output Approximately : 2.5kW*

• Highest efficiency > 94%

• Rated load rotation speed : 639rpm 749rpm

Controller

• Model M2096C-Ⅱ

• Rated input voltage : 96V

• Working voltage range : 45~140V

• Drive system 120 degree square wave energization

Front Suspension Wheel Angle Geometry

Rear Suspension /In-Wheel Motor

Suspension type

• Double Wishbone

• Rocker-Arm

Upright and A-arms assembly

• Rocker-Arms

• Double Wishbone

• Front Upright Assembly

• Nomura Wheel Hub and Axle

• Aurora Spherical Bearings

• Brake Caliper

• Rotor
